| Product Name: |
extos |
| Generic Name: |
Alkylated Chlorosulfonated Polyethylene |
| Chemical Formula / Diagram: |
|
| Product Overview: |
extos, which has excellent dynamic and low temperature properties besides the features of conventional TOSO-CSM®, is suited for dynamic applications such as automotive belts and boots. |
|
Typical Properties/Grades:
| Grade |
Chlorine Content (%) |
Sulphur Content (%) |
ML (1+4) 100ºC |
Features |
Main Applications |
| ET-8010 |
2630 |
0.70.9 |
4040 |
Excellent low temperature and dynamic properties |
Dynamic uses such as automotive belts |
| |
|
| Product Name: |
SKYPRENE |
| Generic Name: |
Polychloroprene Rubber (CR) |
| Chemical Formula / Diagram: |
  |
| Product Overview: |
SKYPRENE polychloroprene rubbers are often specified by design engineers because of their superior properties, such as their resistance to cold, heat, abrasion, ozone, oil and chemicals. |
|
TYPICAL PROPERTIES/GRADES:
| GRADE |
Type |
Mooney Viscosity (ML1+4 at 100ºC) |
Crystallization Rate |
Main Applications |
| B-5 |
Mercaptan modified |
45~53 |
Very slow |
-Wire and cable jackets
-Automotive parts
-General industrial parts
-Sponge
-Construction materials for buildings and public works |
| B-10 |
47~55 |
| B-30 |
45~53 |
Medium |
| B-31 |
36~44 |
| E-20 |
43 |
45~53 |
Very slow |
-Extruded products (various hoses, window frames, etc.)
-Calendered products |
| E-33 |
|
45~53 |
Medium |
| Y-20E |
|
45~53 |
| Y-30* |
|
111~35 |
-General industrial parts for high loading
-Adhesives |
| Y-31 |
|
90~110 |
| Y-30H* |
|
1,460~2,500cps*** |
-Adhesives for high viscosity |
| R-10 |
|
40~60 (at the time of production) |
Very slow |
-Belts
-Rolls
-Wet suits
-Thread rubber
-Linings |
| R-22 |
|
35~55 (at the time of production) |
Medium |
|
| G-40S* |
|
81~95** |
Rapid |
-MMA graft application
-Various adhesives for construction, automobiles, shoe-making, carpentry, tiles, etc. |
| G-40S-1* |
|
81~95** |
| G-40T* |
|
96~113** |
| G-41H* |
|
|
*Chips are thinner than other grades for easy solution
**ML1+2.5 (100ºC)
***10% toluene solution viscosity (Brookfield's viscometer, 23ºC)

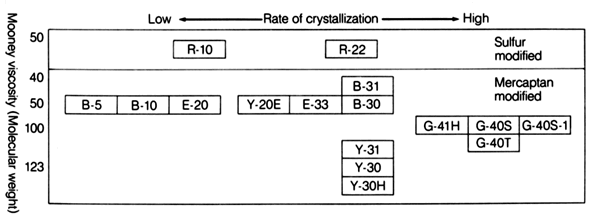

SKYPRENE Family Relationship
| |
|
| Product Name: |
TOSO-CSM |
| Generic Name: |
Chlorosulfonated Polyethylene |
| Chemical Formula / Diagram: |
  |
| Product Overview: |
TOSO-CSM is produced from polyethylene by chlorination and chlorosulphonation with chlorine and sulphur dioxide gas. Various types of TOSO-CSM are obtained according to degree of chlorination and chlorosulphonation as well as sort of polyethylene polymer. TOSO-CSM has excellent resistance against ozone, weather, oil and chemicals. And it can be colored in brilliant shades. TOSO-CSM is used for hoses of automobiles, gas and other industrial use, electric cable, rubber coatings, packings, gasket, rolls and lining, adhesives and bounding systems, etc. For goods of daily use, TOSO-CSM is used for life boats, life-jackets, windbreakers, raincoats, handrails of escalator and municipal gas hoses, etc. |
|
Typical Properties/Grades:
| Grade |
Chlorine Content (%) |
Sulphur Content (%) |
Mooney Viscosity (ML1+4 at 100ºC) |
Features |
Main Applications |
| TS-530 |
35 |
1.0 |
56 |
Well balanced physical and processing properties |
-Moldings
-Electric cables
-Rubber coated cloth
-Hoses
-Rolls
-Machine parts |
| TS-430 |
35 |
1.0 |
46 |
Low Mooney viscosity, variation of TS-530 |
|
| TS-830 |
36 |
1.0 |
90 |
High Mooney viscosity, variation of TS-530 |
|
| TS-320 |
23 |
1.0 |
37 |
Thermoplastic (applicable without vulcanization) |
-Waterproof cloth
-Floor tiles
-Magnetic rubber |
| TS-340 |
43 |
1.1 |
300-500cps* |
-Good solubility
-Low viscosity of solution
-Oil resistance |
-Paints for solid surfaces
-Oil resistant moldings |
| *25% toluene solution viscosity (Brookfield's viscometer, 23ºC) |
